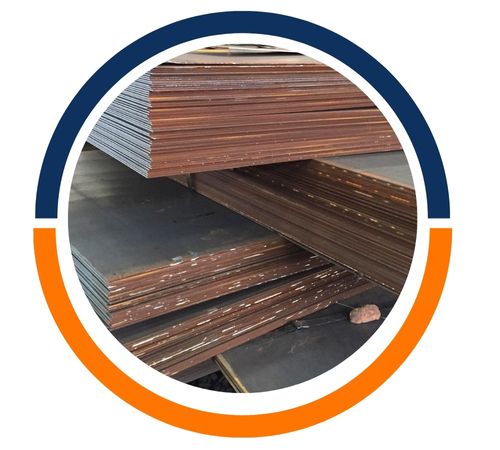

Bhavesh Steel is one of the prominent manufacturers and exporters of high-quality BIRNAR 500 Sheets and Plates in Dubai, UAE. With a steadfast presence in the steel sector, the company is most prominent for providing premium-quality products that meet international quality standards. BIRNAR 500 Sheets and Plates are world-famous for their superior strength, durability, and wear-resistant properties, making them a sought-after solution for heavy-duty industrial uses. Bhavesh Steel aims to provide satisfaction to customers through on-time delivery, competitive prices, and tailored solutions for various industries in the UAE and the surrounding areas.
BIRNAR 500 Sheets and Plates consist of carbon, manganese, chromium, and other alloying elements that improve their mechanical performance. The plates provide a yield strength of 500 MPa and tensile strength between 700 to 900 MPa, along with superior impact resistance. Their heat-treated surface provides high hardness and superior wear resistance, which is perfect for demanding operating conditions. In spite of their hardness, these sheets remain good to machine and weld, creating a very flexible product for various industrial applications.
Item: BRINAR 500
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Thickness | Hardness HBW | Typical yield strength MPa, |
| mm | (min – max 1) | not guaranteed |
| 4 – 32 | 470 – 530 | 1250 |
| (32) – 103 | 450 – 540 | 1250 |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| THICKNESS MM | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | TYPV | TYPV |
| 4-13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13) -32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.50 | 0.30 | 0.004 | 0.62 | 0.41 |
| (32) -40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 1.00 | 0.60 | 0.004 | 0.64 | 0.43 |
| (40) -80 | 0.30 | 0.7 | 1.6 | 0.025 | 0.01 | 1.50 | 1.50 | 0.60 | 0.004 | 0.74 | 0.46 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
