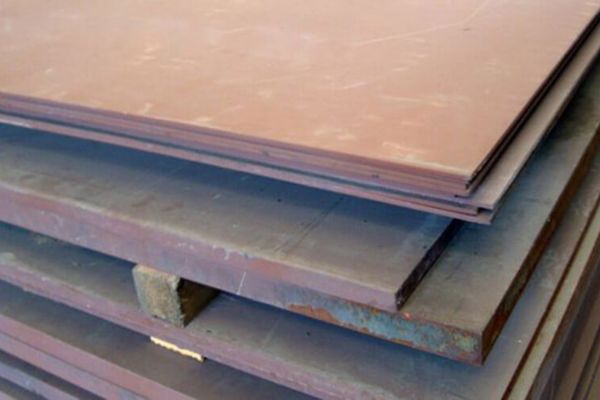

Bhavesh Steel is a reliable name amongst top-notch manufacturers and suppliers of 400 BHN Sheet and Plates in Dubai, UAE. Renowned for offering high-performance wear-resistant steel, Bhavesh Steel offers products that are of international quality standards and are utilized across different industrial sectors. With a sharp emphasis on customer satisfaction, state–of-the-art technology, and surefire logistics, the business has set itself apart as a preferred option for customers in construction, mining, and engineering sectors. Their 400 BHN plates are designed to provide strength, durability, and long lifetime, so they are best suited for demanding applications.
400 BHN Sheets and Plates are produced from high carbon content alloy steel and are alloyed with elements such as manganese, chromium, and boron. The plates have a Brinell Hardness Number (BHN) of approximately 400, providing superior wear resistance. The mechanical properties involve high tensile strength (up to 1250 MPa), superior toughness, and superior formability. Plated with a layer of abrasion–resistant material, they are hardened to retain hardness even in harsh situations. These characteristics make them perfect for heavy-duty use in abrasive situations.
| Heat Treatment | Rolling/Normalised, N, Q+T |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) |
| Surface Paint | PVDF, PE, HDP, SMP, EP |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 – 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Yield Strength | Tensile Strength | Brinell Hardness | Elongation | Reduction of Area |
| 140,000 Psi | 180,000 Psi | 400BHN | 15% | 60% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
