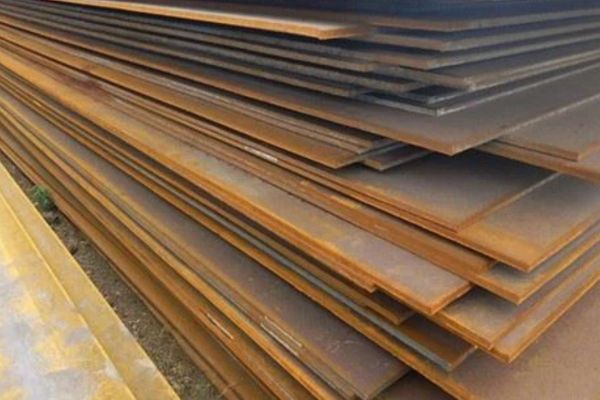

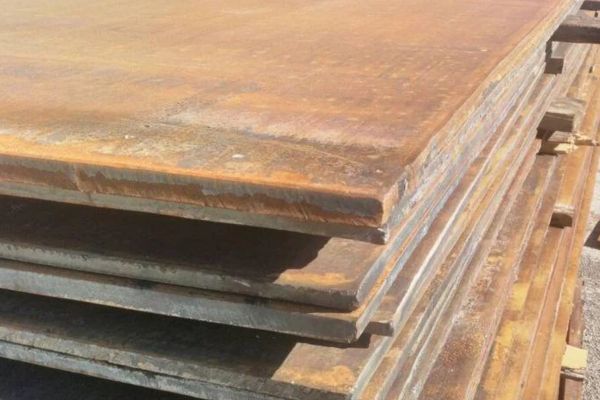

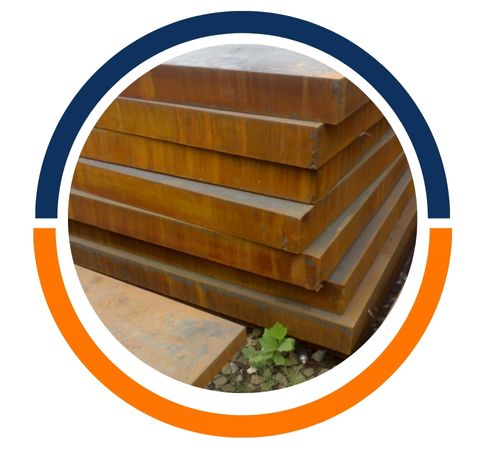

In Dubai, United Arab Emirates, Bhavesh Steel is a respected producer and supplier of Corten Steel Sheets and Plates, providing high-quality weather-resistant steel solutions for a range of architectural and industrial applications. Our Corten Steel products are renowned for their exceptional capacity to acquire a protective rust-like appearance, which improves corrosion resistance and removes the need for painting. We offer premium materials that adhere to global standards, emphasising performance, durability, and aesthetics. Bhavesh Steel provides dependable steel products for construction, infrastructure, and creative design projects to customers throughout the United Arab Emirates and the Middle East.
Carbon, manganese, phosphorus, sulphur, silicon, copper, chromium, and nickel are among the low-alloy steels that make up Corten Steel Sheets and Plates. When exposed to the atmosphere, these components combine to create a stable, protective oxide layer that improves corrosion resistance. The steel typically has a tensile strength of 470–630 MPa and a minimum yield strength of 345–355 MPa. Additionally, it exhibits strong impact resistance, machinability, and weldability. Because of its mechanical qualities, it can be used in exposed and load-bearing applications, especially in environments with severe weather conditions where durability is crucial.
Materials : Corten Steel Sheet/Plates

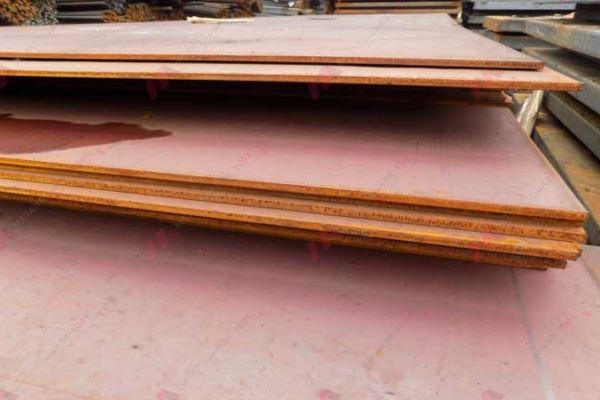

Standard : ASTM A588 / ASME SA588
Width : 750mm TO 1500mm
Length : 2500mm to 12000mm
Thickness : 0.8mm TO 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
| Corten – A Plates | ASTM 588 GR A | ASTM 242 TYPE -1 | IRSM 41 -97 | |
|---|---|---|---|---|
| Carbon, Max | 0.12 | 0.19 | 0.15 | 0.10 |
| Manganese | 0.20-50 | 0.80-1.25 | 1.00 | 0.25-0.45 |
| Phosphorus | 0.07-0.15 | 0.04 | 0.15 | 0.07-0.11 |
| Sulphur, max | 0.030 | 0.05 | 0.05 | 0.030 |
| Silicon | 0.25-0.75 | 0.30-0.65 | 0.25-0.40 | 0.28-0.72 |
| Nickel, max | 0.65 | 0.40 | – | 0.20-0.49 |
| Chromium | 0.50-1.25 | 0.40-065 | – | 0.30-0.50 |
| Molybdenum, max | – | – | – | – |
| Copper | 0.25-0.55 | 0.25-0.40 | 0.20 min | 0.30-0.39 |
| Vanadium | – | 0.02-0.10 | – | 0.050 |
| Aluminimum | – | … | – | 0.030 |
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JIS G3114 |
|---|---|---|---|---|---|---|---|
| 1.8961 | S235J2W | WTSt 37-3 | E 24 W 4 | Fe 360 DK 1 | – | – | – |
| 1.8945 | S355J0WP | E 36 WA 3 | Fe 510 C1K1 | WR 50 A | – | – | – |
| 1.8946 | S355J2WP | – | E 36 WA 4 | Fe 510 D1K1 | – | A 242 Type 1 | – |

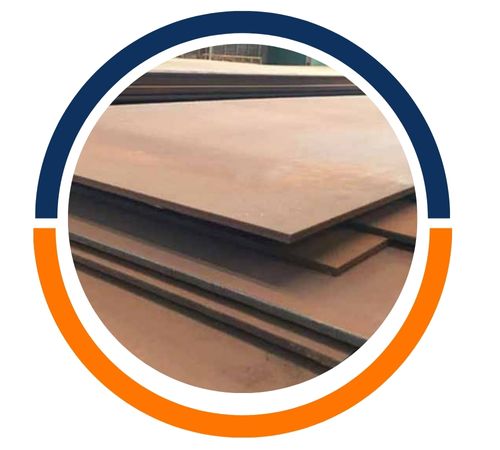

| 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A 588 – A 242 Gr. 1 | SMA 50 AW |
| 1.8963 | S355J2G1W | WTSt 52-3 | – | Fe 510 D2K1 | WR 50 C | A 588 Gr. A | to |
| 1.8965 | S355J2G2W | – | – | – | – | – | SMA 50 CP |
| 1.8966 | S355K2G1W | – | E 36 WB 4 | – | – | A 709 Gr. 50 W | – |
| 1.8967 | S355K2G2W | – | – | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Bhavesh Steel is one of the most prominent manufacturers and suppliers of superior quality Corten Steel Sheet and Plate in Dubai, UAE. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Width | Length |
|---|---|---|
| 1/2 inch | 48.00 inch | 120.00 inch |
| 1/4 inch | 60.00 inch | 120.00 inch |
| 1/4 inch | 48.00 inch | 120.00 inch |
| 3/8 inch | 48.00 inch | 120.00 inch |
| Thickness | Weight (lbs/ft) |
|---|---|
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |
| FINISH | STOCK | SHEET SIZE MM | THICKNESS MM |
|---|---|---|---|
| Bright | Natural | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |

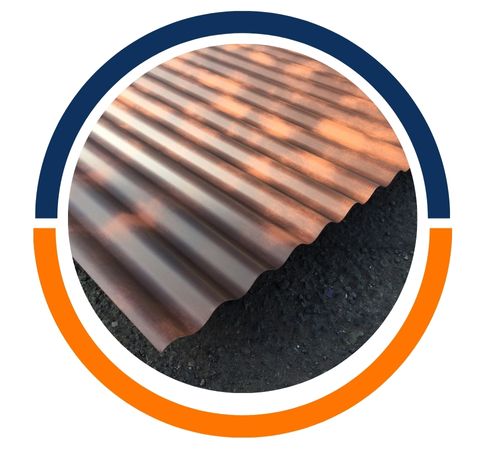

| Bright | Corrugated | 3000 x 1110 | 0.8 |
| Bright | Natural | 2500 x 1250 | 1 |
| Patina Rust (to order) | Rusted | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |
| Patina Rust (to order) | Rusted | 2500 x 1250 | 1 |
| Rusted (to order) | Corrugated | 3000 x 1110 | 0.8 |
Because of their durability and distinctive weathered appearance, corten steel sheets and plates are frequently used in industrial design, construction, and architecture. They are frequently utilised for structural cladding, outdoor sculptures, architectural screens, building facades, and signage. Corten steel is used in infrastructure for guardrails, railway waggons, retaining walls, and bridges. Additionally, it is utilised in maritime settings and shipping containers where resistance to atmospheric corrosion and moisture is essential. It is also used by landscape designers for garden structures, fencing, and planter boxes, demonstrating its versatility in combining practicality and beauty.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
