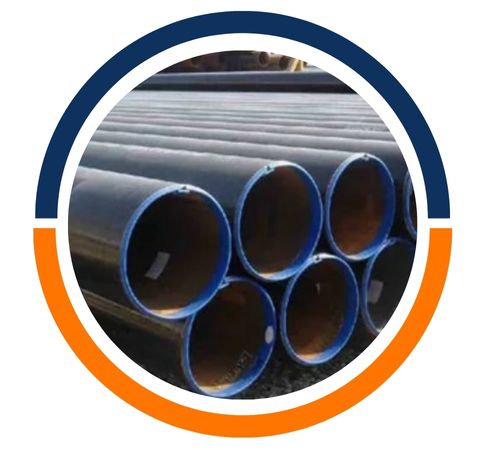

Bhavesh Steel, founded in 1995 and located in Dubai, UAE, is a leading manufacturer and supplier of high-quality carbon steel SA178 tubing. The tubes are designed to perform exceptionally in heat exchangers, economizers, and other high-pressure uses. Bhavesh Steel’s adherence to quality means that every tube exceeds high international standards, providing customers with long-lasting and dependable solutions for their industrial requirements. With a strong distribution network and a quality reputation, Bhavesh Steel is still a trusted ally in the steel business.
Carbon steel SA178 tubing is made up mostly of carbon, manganese, phosphorus, sulfur, and silicon. The contents of carbon generally range from 0.06% to 0.18%, whereas the content of manganese ranges from 0.27% to 0.63%. Phosphorus and sulfur contents are maintained low, typically below 0.035% and 0.035%, respectively, to improve weldability and lower brittleness. Mechanical properties consist of tensile strengths of 325 MPa (Grade A), 415 MPa (Grade C), and 485 MPa (Grade D), with yield strengths of 180 MPa, 255 MPa, and 275 MPa, respectively. Elongation percentages range from 30% to 35%, depending on the grade.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Element | A/SA 178 Gr. A | A/SA 178 Gr. C | A/SA 178 Gr. D |
| C | 0.06 – 0.18 | 0.35 max | 0.27 max |
| Mn | 0.27 – 0.63 | 0.80 max | 1.00 – 1.50 |
| P | 0.035 max | 0.035 max | 0.030 max |
| S | 0.035 max | 0.035 max | 0.015 max |
| Si | – | – | 0.10 min |
| Element | A/SA 178 Grade A | A/SA 178 Grade C | A/SA 178 Grade D |
| Tensile Strength KSI (MPa) | 47 (325) | 60 (415) | 70 (485) |
| Yield Strength KSI (MPa) | 26 (180) | 37 (255) | 40 (275) |
| Elongation min. % | 35 | 30 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel SA178 Tubing in Dubai, UAE. We offer premium steel materials and a wide range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and outstanding customer service, we source the finest raw materials to ensure exceptional strength and durability for demanding industrial applications. Contact us today for all your Carbon Steel SA178 Tubing requirements!
| Grade | Grade A, Grade C, Grade D, BKW, NBK, GBK |
| Available sizes | 4 Inch to 26 Inch, Customized Size Available |
| OD | 12.7mm to 127mm |
| Wall thickness | 1.5mm to 6.0mm |
| Length | 6m-25m, Custom Double / Single Random |
| End Finish | Plain End, Beveled End, Treaded Protected With Plastic End Caps |
| Shape | Round, Coiled, “U” Bend, Rectangular, Hydraulic |
| Manufacturing types |
|
| Common uses & application |
|
| Producing process | Electric-Resistance-Welded |
| Delivery Condition | Annealed, Normalized, Tempered, Heat Treatment, BK, BKS |
| Surface | Varnish |
| Common Supply Terms followed |
|
Carbon steel SA178 tubing is extensively applied across numerous industries because of its superior strength and heat transfer capabilities. In the power generation industry, these tubes are utilized in air preheaters, economizers, and heat exchangers to transfer heat efficiently and enhance energy efficiency. They are also employed in fossil fuel plants and steam-generating boilers for their capacity to be used at high pressures and temperatures. SA178 tubes also find application in water distribution systems and waste heat recovery systems, delivering long-lasting performance in stressed conditions.
