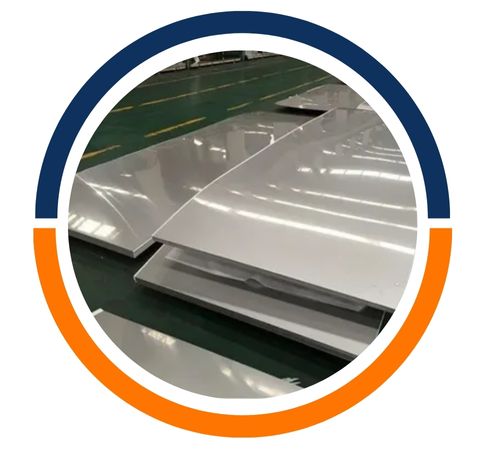

Bhavesh Steel is a prominent manufacturer and supplier of S890QL high-strength steel plates and sheets in Dubai, UAE. Well known for providing superior-quality quenched and tempered steel products, Bhavesh Steel serves various industries like construction, heavy machinery, and transportation. Their S890QL steel products are marked by superior yield strength and toughness, which are perfect for applications involving strong structural integrity. With its focus on quality and customer satisfaction, Bhavesh Steel has emerged as a reliable name in the UAE’s steel market.
S890QL is a high-strength structural steel with a minimum yield point of 890 MPa, manufactured in accordance with EN 10025-6 specifications. Its chemical composition is carbon (max 0.22%), manganese (max 1.80%), silicon (max 0.80%), phosphorus (max 0.020%), sulfur (max 0.010%), chromium (max 1.50%), copper (max 0.50%), molybdenum (max 0.70%), nickel (max 2.00%), niobium (max 0.06%), vanadium (max 0.12%), titanium (max 0.05%), and boron (max 0.0050%). Mechanical properties are thickness-dependent: yield strength for plates of thickness 3–50 mm is 890 MPa, tensile strength is 940–1100 MPa, and elongation is at least 11%. Impact toughness is 50 J at 0°C, 40 J at -20°C, and 30 J at -40°C .
Steel Standard: EN10025
Thicknesses: 3 mm to 300 mm
Widths: 2000 mm, 2500 mm, 3000 mm
Lengths: Up to 12000 mm long
Delivery State:Quenched and Tempered
Packing: Standard seaworthy package
|
C |
Si |
Mn |
P |
S |
B |
Cr |
Cu |
Mo |
|
0.20 |
0.80 |
1.70 |
0.020 |
0.010 |
0.005 |
1.50 |
0.50 |
0.70 |
|
N |
Nb* |
Ni |
Ti* |
V* |
Zr* |
|||
|
0.015 |
0.06 |
2.0 |
0.05 |
0.12 |
0.15 |
|
mm |
Yield Strength ReH (MPa) |
Tensile Strength Rm (MPa) |
Elongation A5 % minimum |
Impact Strength J, Minimum |
|
3 to 50 |
890 |
940 – 1100 |
11 |
30 @ -40º C |
|
> 50 to 100 |
830 |
880 – 1100 |
11 |
30 @ -40º C |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
S890QL steel plates and sheets are found in a number of applications because of their extreme strength and durability. Construction uses S890QL for use in bridges, skyscrapers, and stadiums, with the ability to withstand superior loads. S890QL is used in mining equipment like excavators, dump trucks, and loaders, which can withstand extreme environments. In the oil industry, these plates find application in offshore rigs and platforms, providing strength and resilience essential in severe conditions. Also, S890QL is applied in the production of heavy-duty vehicles, cranes, and lifting machinery, providing structural strength against rigorous loads.
