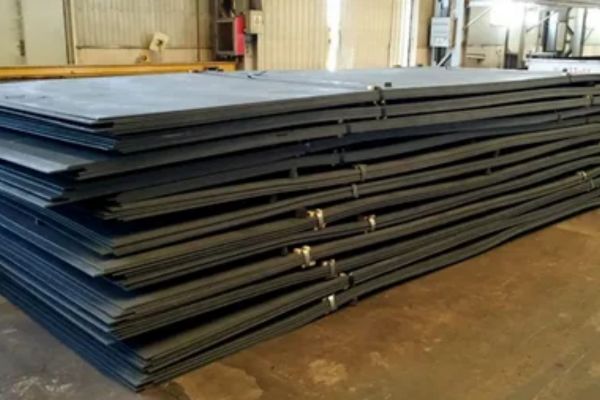

Bhavesh Steel is a renowned manufacturer and supplier of S1300QL high-strength steel sheets and plates in Dubai, UAE. As a quenched and tempered steel product specialist, Bhavesh Steel serves industries that need strong structural materials. Their S1300QL products are recognized for having outstanding yield strength and toughness and are well suited for applications demanding strong structural integrity. Adhering to excellence and customer satisfaction, Bhavesh Steel has become a reliable name in the steel industry of the UAE.
S1300QL is a high-strength low-alloy steel with a minimum yield point of 1300 MPa, manufactured according to EN 10025-6 norms. Its chemical structure contains carbon (max 0.25%), manganese (1.4%), silicon (max 0.50%), phosphorus (max 0.020%), sulfur (max 0.010%), chromium (0.8%), molybdenum (0.7%), nickel (2.0%), and vanadium (0.08%). Its mechanical characteristics are a tensile strength of 1400–1700 MPa and an elongation of 8%, which ensures good formability and toughness. Impact toughness is 27 J at -40°C, which will provide durability in low-temperature conditions .
Thickness : 3/16” (5mm) to 4” (100mm)
Width : 1500 – 3500mm
Length : 3000 – 18000mm
Grade : DILLIMAX 1300, S1300QL, EN 10025 S1300
| C | Si | Mn | P | S | Cr | Mo | Ni | V |
| 0.25 | 0.5 | 1.4 | 0.015 | 0.005 | 0.8 | 0.7 | 2.0 | 0.08 |
| Minimum yield strength R eh *) | Tensile strength R m Mpa*) | Minimum elongation at fracture A % |
| Mpa 1300 1) | 1400-1700 | 8 |
