Bhavesh Steel, a prominent manufacturer and supplier located in Dubai, UAE, specializes in high-quality Carbon Steel IS 1239 Pipes that are celebrated for their durability, precision, and adherence to both Indian and international standards. With a solid foothold in the Middle East, Bhavesh Steel is dedicated to providing robust piping solutions that cater to a variety of industrial and structural needs. The company’s IS 1239 pipes are crafted using cutting-edge technology, guaranteeing exceptional performance, resistance to corrosion, and straightforward installation. Engineers and contractors trust Bhavesh Steel as a dependable partner for infrastructure and utility projects that demand reliable carbon steel piping systems.

IS 1239 Steel Pipe Supplier in Dubai, IS 1239 Carbon Steel Pipes Exporter in Ajman, IS 1239 Pipes Sizes in mm, IS 1239 CS Pipes Manufacturer in Dubai, Carbon Steel IS 1239 Pipes Price List in Sharjah, CS IS 1239 Pipes Distributor in Dubai, IS 1239 Carbon Steel Pipes in Jebel Ali, IS 1239 CS Pipes Supplier in Dubai, CS IS 1239 Pipes Distributor in UAE

Carbon Steel IS 1239 Seamless Pipes

Carbon Steel IS 1239 Welded Pipes

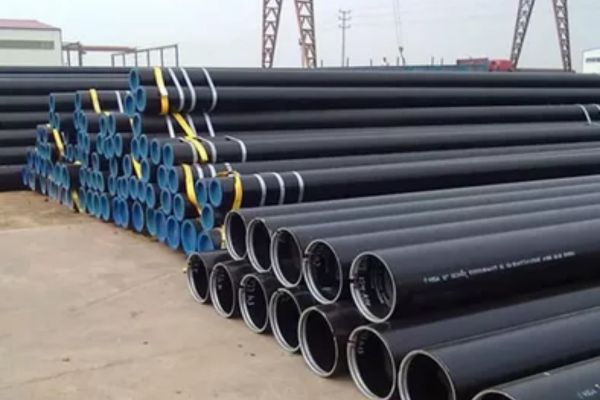

Carbon Steel IS 1239 EFW Pipes

IS 1239 CS Pipes Exporter in UAE, Carbon Steel IS 1239 Pipes Price List in Dubai, IS 1239 Pipes Supplier in Ajman, CS IS 1239 Pipes Exporter in Dubai, IS 1239 Pipes Exporter in Dubai, IS 1239 Carbon Steel Pipes Size Chart, IS 1239 Pipes Price in Jebel Ali, CS IS 1239 Pipes Weight Chart, IS 1239 Carbon Steel Pipes Thickness, IS 1239 CS Pipes Supplier in Sharjah, IS 1239 Pipes Stockist in Ajman

What is Carbon Steel IS 1239 Pipe?

These Carbon Steel IS 1239 Pipes are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, creating a well-balanced mix of strength and ductility. Typically, they showcase a minimum tensile strength of 320 MPa and a yield strength of around 195 MPa, making them suitable for moderate mechanical performance in low-pressure applications. Thanks to their excellent formability and welding properties, IS 1239 pipes are perfect for fabrication and structural purposes. Manufactured under stringent quality controls, they comply with IS 1239 Part 1 standards, ensuring dependable performance in general engineering and light-duty applications.

Carbon Steel IS 1239 Pipe Specifications

Size range	15mm NB to 150mm NB
Dimensions	IS: 1239 (Pt I) – 2004 , BS – 1387 / 1985
Length	upto 7 M
Specifications	IS – 1239 (Part -1) 2004 / BS – 1387 / 1985
TC	MR0103, NACE MR0175, EN 10204 3.2, 10204 3.1

Carbon Steel IS 1239 Pipes Chemical Composition

Specification	Grade	S	Mn	C	P	Si	C.0E.0
–	–	–	–	–	–	–	PCM	IIW
IS:1239	–	0.0040	1.030	0.020	0.0040	–	–	–
–	Fe 330	0.0040	1.020	0.016	0.0040	–	–	–
–	Fe 410	0.0040	1.030	0.020	0.0040	–	–	0.045
–	Fe 450	0.0040	1.020	0.025	0.0040			0.045

Carbon Steel IS 1239 Pipes Mechanical Properties

IS 1239 Pipes Mechanical Properties				Impact
Yield Strength				Tensile Strength				% Elongation
Min		Max		Min		Max
								e (min)
MPa	PSI	MPa	PSI	MPa	PSI	MPa	PSI

–	–	–	–	–	–	–	–	20 ABOVE 25 mm
275	–	–	–	450	–		–	15
–	–	–	–	320	–		–	12 UPTO 25 mm NB
235	–	–	–	410	–		–	18
195	–	–	–	330	–		–	20
–	–	–	–	–	–	–	–	GL= 5.65	Area

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel IS 1239 Pipe in Dubai, UAE

Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel IS 1239 Pipe in Dubai, UAE. We provide premium steel materials and a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we use only the finest raw materials to ensure superior performance for industrial applications with stringent requirements. Contact us today for all your Carbon Steel IS 1239 Pipe needs!

IS 1239 Carbon Steel Weight Thickness

Size	Other Diameter	Inner Diameter	Wall Thickness	Standard to XXHY	Weight	Section Modulus	Schedule	Gallon
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

IS 1239 Carbon Steel Pipes Exporter in UAE, Carbon Steel IS 1239 Pipes Price List in Dubai, IS 1239 Pipes Supplier in Ajman, Carbon Steel IS 1239 Pipes Exporter in Dubai, IS 1239 Carbon Steel Pipes Exporter in Dubai, IS 1239 CS Pipes Size Chart, IS 1239 Carbon Steel Pipes Price in Jebel Ali, IS 1239 Pipes Weight Chart, IS 1239 CS Pipes Thickness, IS 1239 Carbon Steel Pipes Supplier in Sharjah, IS 1239 Pipes Stockist in Ajman

Types of Carbon Steel IS 1239 Pipe

IS 1239 CS Pipes Supplier in Dubai, Carbon Steel IS 1239 Pipes Exporter in Ajman, IS 1239 CS Pipes Manufacturer in Dubai, IS 1239 Carbon Steel Pipes Price List in Sharjah, CS IS 1239 Pipes Distributor in Dubai, IS 1239 CS Pipes in Jebel Ali, IS 1239 CS Pipes Supplier in Dubai, Carbon Steel IS 1239 Pipes Distributor in UAE, IS 1239 Carbon Steel Pipes Sizes in mm

Uses of Carbon Steel IS 1239 Pipe

The versatility and cost-effectiveness of Carbon Steel IS 1239 Pipes make them widely used in various low-pressure and structural applications. They are commonly found in water transportation, plumbing, air and steam lines, fencing, and as structural supports in buildings and industrial sheds. Additionally, these pipes are extensively utilized in irrigation systems, HVAC setups, and fire protection networks. Their ease of welding and formability makes them suitable for both underground and above-ground piping systems. For infrastructure projects that require reliable, long-lasting, and budget-friendly piping solutions, IS 1239 pipes are an excellent choice.
