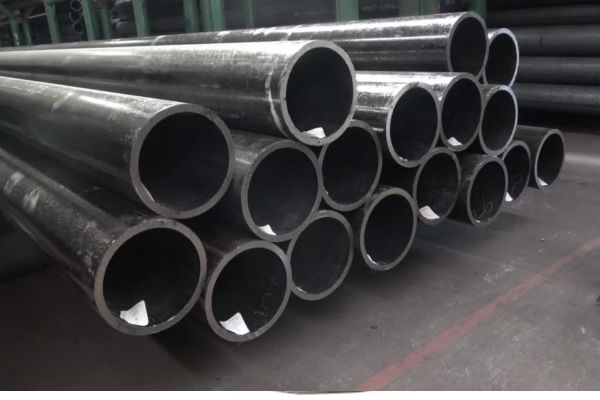

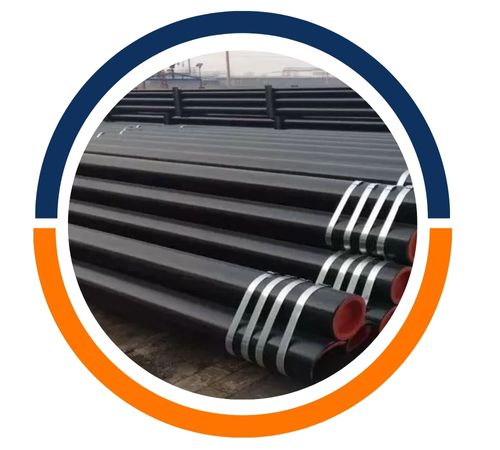

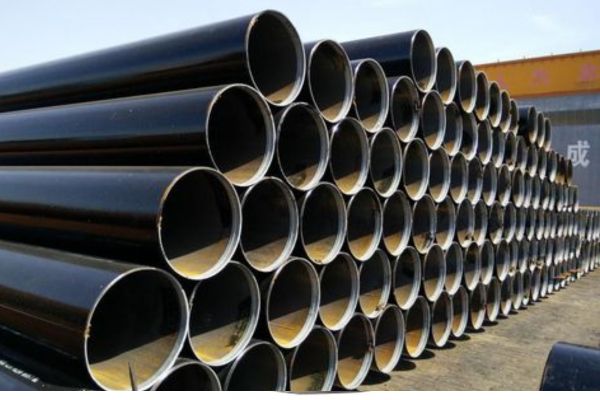

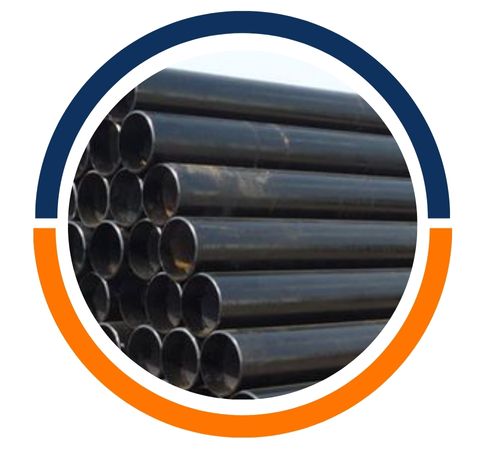

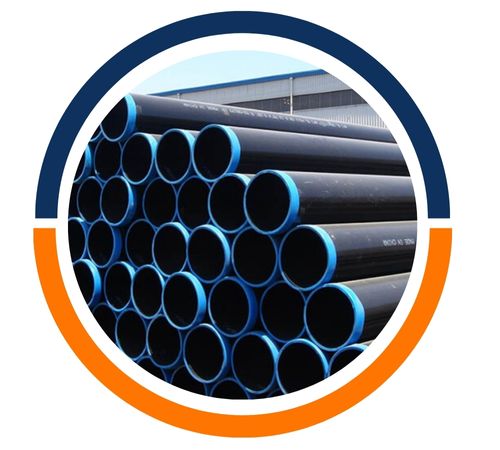

Based in Dubai, United Arab Emirates, Bhavesh Steel is a reputable producer and supplier of carbon steel ERW (Electric Resistance Welded) pipes. Bhavesh Steel offers ERW pipes that are designed to satisfy global standards for strength and dependability, all while maintaining a dedication to quality, accuracy, and client satisfaction. Numerous structural and pressure-based applications are perfect for these pipes. Oil and gas, construction, water supply, and infrastructure development are just a few of the industries that Bhavesh Steel serves. It provides clients in the UAE and abroad with specialised solutions, reliable quality, and effective logistics.
Hot-rolled or cold-rolled steel coils containing carbon, manganese, phosphorus, sulphur, and silicon are used to make carbon steel ERW pipes. Manganese improves toughness, while carbon gives strength and hardness. ERW pipes have uniform wall thickness, good corrosion resistance, and exceptional tensile and yield strength. Good weldability, ductility, and resistance to pressure and deformation are some of their mechanical qualities. They are appropriate for demanding applications needing durability and performance under both static and dynamic loads because the electric resistance welding process guarantees a strong, consistent weld seam.
Standard : ASTM A53, A106, API 5L, ASME B36
Size : 1/2” NB – 24” NB
Materials : Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65
Wall Thickness : SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160,XXS DIN, JIS standard thickness
Length : Fixed: 5.8, 6.0, 11.8, 12.0m Random length: 5-12m
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal | Pipe size | OD mm | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | 22.2 | 294 | 12.7 | 171 | ||
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
Bhavesh Steel is a leading supplier of high-quality Carbon Steel ERW Pipe products in Dubai, UAE. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
Industries that need reliable and affordable piping solutions frequently use carbon steel ERW pipes. They work in pipelines that carry petroleum products, gas, and oil in the oil and gas industry. They are used in the construction industry for columns, scaffolding, and structural supports. In addition, they work in general engineering, HVAC systems, fencing, and water distribution. ERW pipes are appropriate for low- and medium-pressure applications because of their strength and consistency. They are a popular option for mechanical, industrial, and infrastructure systems due to their dependability, versatility, and simplicity of installation.
