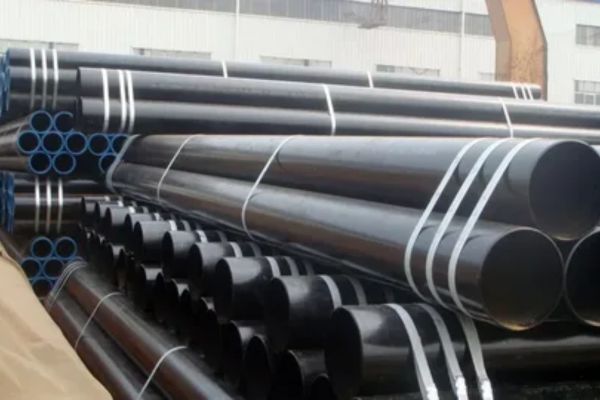

Bhavesh Steel is a prominent manufacturer and supplier of Carbon Steel A106 Gr C Pipes in Dubai, UAE, with a reputation for providing top-quality products meeting international standards. Having years of industry experience and an unshakeable focus on customer satisfaction, we offer dependable piping solutions designed to suit varied industrial requirements. Our Carbon Steel A106 Grade C Pipes are popularly used for their excellent strength, burr-free finish, and wear-and-tear resistance. Catering to industries like oil & gas, power plants, and construction, Bhavesh Steel provides timely shipment and competitive prices, making us a reputable name in the UAE steel supply market.
Carbon Steel A106 Gr C Pipe consists of carbon (0.35%), manganese (0.29–1.06%), phosphorus (≤0.035%), and sulfur (≤0.035%). This composition provides the pipe with good mechanical properties that can be used for high-temperature applications. Its tensile strength is 485 MPa to 620 MPa, and minimum yield strength is 275 MPa. With good ductility, weldability, and toughness, A106 Gr C pipes can function consistently in challenging conditions. These pipes also provide a good combination of strength and machinability, suited for high-value industrial applications needing ruggedness and accuracy.
| Standard Specification | ASTM A 106, ASME SA 106 (Grade C) |
| Codes and Standards | ANSI, ASME, ASTM, API, SAE, BS, AGA, AWWA, ISO, DIN |
| Dimensions | ASME/ ANSI B36.10 / 19 |

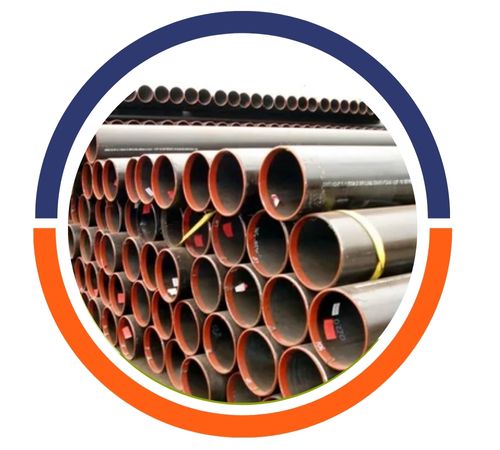

| Standard Size | 1/2” NB to 36” NB (LSAW, SSAW, HSAW) |
| Wall Thickness | 3-12mm |
| Pipes schedules | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |

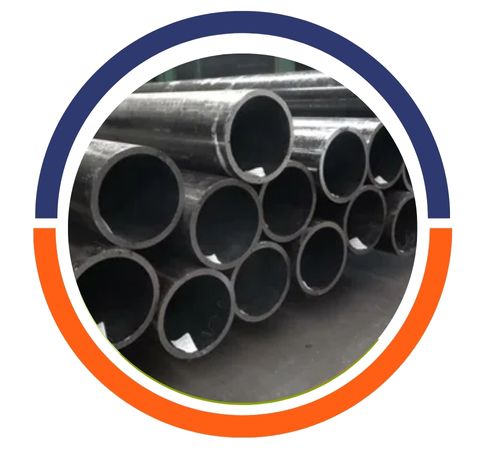

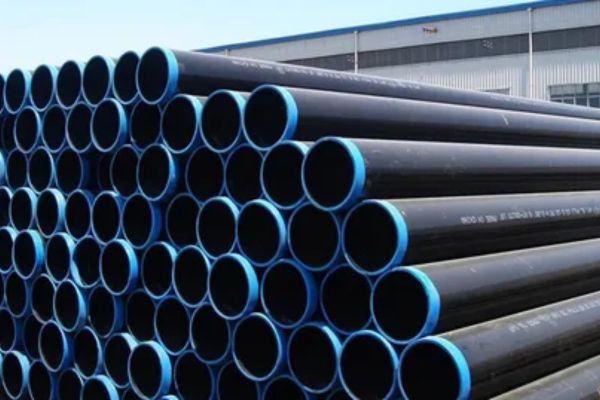

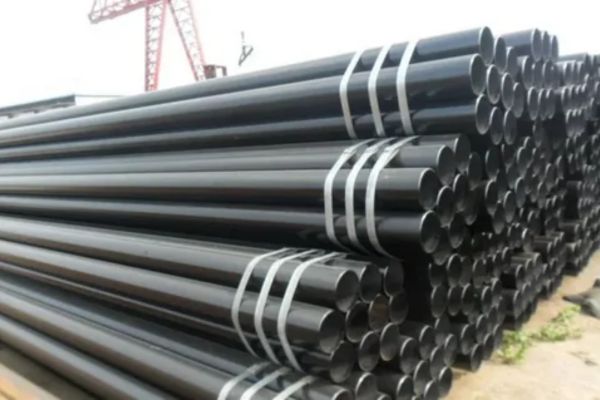

| Producing techniques | Seamless / ERW / Welded / Fabricated / CDW / EFW |

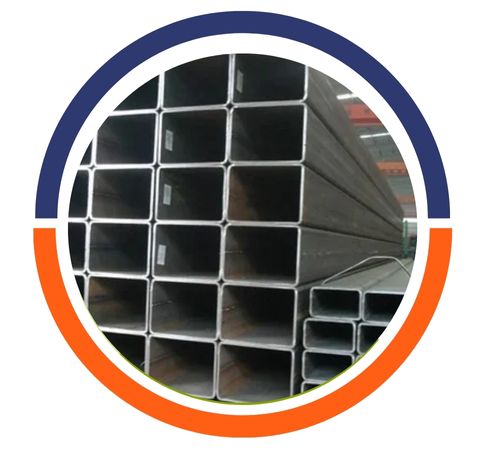

| Types | Round, Half Round, Square, Rectangular or Custom shape |
| Length | 3 to Max18 Meters or custom |
| End | Beveled End, Plain End, Treaded |
| Test Certificate | EN 10204 3.1 B |
| Grade | MFG. | C max | Mn* | P max | S max | Si min | Cr˟ max | Cu˟ max | Ni˟ max | Mo˟ max | V˟ max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | SMLS | 0.35* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| Grade | Process | Tensile Strength (MPa) Min | Yield Strength (MPa) Min | Elongation in 2” (%) MinimumLong. Strip Test | Elongation in 2” (%) MinimumTrans. Strip Test |
|---|---|---|---|---|---|
| C | SMLS | 70,000 [485] | 40,000 [275] | 30 | 16.5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipes Size [DN Designator] | Under | Over | ||
| mm | in. | mm | in. | |
| 1/8 to 1-1/2 [6 to 40], incl | 0.4 | 1/64 (0.015) | 0.4 | 1/64 (0.015) |
| Over 1-1/2 to 4 [40 to 100], incl | 0.8 | 1/32 (0.031) | 0.8 | 1/32 (0.031) |
| Over 4 to 8 [100 to 200], incl | 0.8 | 1/32 (0.031) | 1.6 | 1/16 (0.062) |
| Over 8 to 18 [200 to 450], incl | 0.8 | 1/32 (0.031) | 2.4 | 3/32 (0.093) |
| Over 18 to 26 [450 to 650], incl | 0.8 | 1/32 (0.031) | 3.2 | 1/8 (0.125) |
| Over 26 to 34 [650 to 859], incl | 0.8 | 1/32 (0.031) | 4.0 | 5/32 (0.156) |
| Over 34 to 48 [850 to 1200], incl | 0.8 | 1/32 (0.031) | 4.8 | 3/16 (0.187) |
Bhavesh Steel is a top manufacturer and supplier of high-quality Carbon Steel A106 Gr C Pipe products in Dubai, UAE. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel A106 Gr C Pipes find extensive applications in various industries because of their strength and thermal resistance. These pipes are suitable for carrying oil, gas, steam, and other fluids in petroleum refining, power plant, petrochemicals, and shipbuilding industries. They are also used extensively in heat exchangers, boilers, condensers, and pressure vessels. Their high strength and corrosion resistance make them the preferred option for structural use in construction and offshore operations. Bhavesh Steel A106 Gr C pipes guarantee performance, longevity, and safety in both critical and general industrial processes.
