Bhavesh Steel is a prominent manufacturer and supplier of Carbon Steel API X60 5L PSL 2 Pipes in Dubai, UAE, known for providing high-quality steel piping solutions to various industries. With years of experience and an unwavering commitment to excellence, Bhavesh Steel ensures that every product meets international quality standards and client requirements. Our API X60 5L PSL 2 pipes are built for performance applications, with durability and reliability in harsh environments. We provide services to oil & gas, petrochemical, and infrastructure industries in the UAE as well as global markets.
API X60 5L PSL 2 Pipes made of carbon steel contain mostly carbon, manganese, phosphorus, sulfur, and micro-alloying components such as niobium, vanadium, or titanium for strength and hardness. These pipes show a minimum yield strength of 60,000 psi and tensile strength in the range 75,000 to 95,000 psi and are thus appropriately used for high-pressure conditions. They have better toughness, weldability, and corrosion resistance. The PSL 2 grade has further testing and stricter chemical and mechanical property requirements than PSL 1 to provide even greater reliability in key applications.
| Grade of material | X60 / L415 (N, M, Q, R) /td> |
| Standard | ISO 3183 L415/ API 5L X60 |
| API 5L X60 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| X60 SAW | 16″ – 100″ NB |

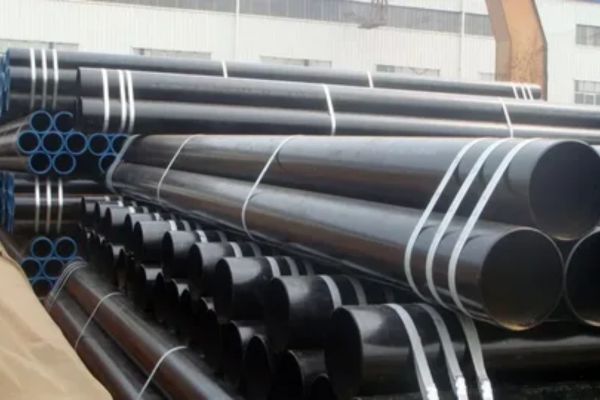

| API 5L X60 PSL2 ERW and HFW | 1/2” NB – 24” NB |

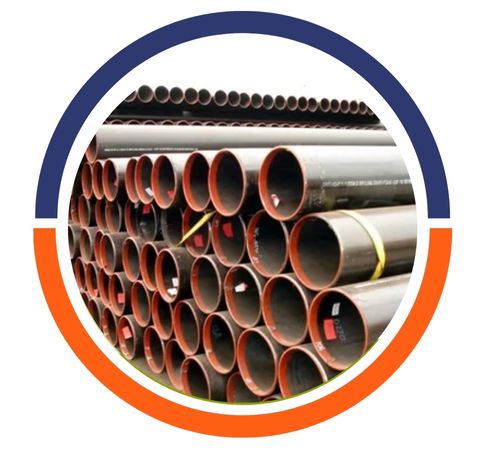

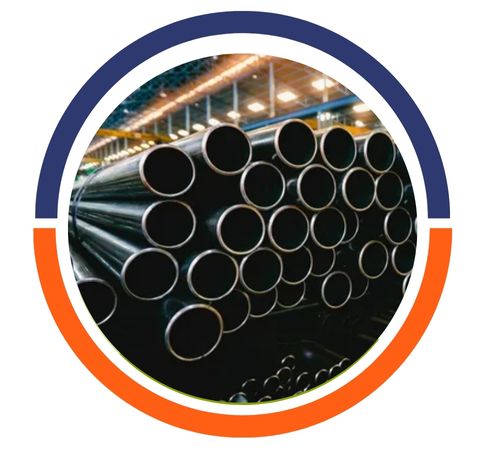

| Grade L415 X60 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X60 PSL2 Pipe end | Pub Joints, Coupling, Deburring, Flanged Ends, Grooved, Buttweld, Beveled End (BE), Square Cut, Thread Cutting, Cut Grooves, Squared Ends, Chamfering, Plain end (PE), Threaded Ends (Male & Female), Vibrator Grinding, Socket, Screwed |
| X60 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters |
| API 5L X60 Wall Thickness | SCH160, SCH-STD, SCH-XXS, SCH-XS, SCH40, SCH80, |
| PSL Level | |
| Coating for API 5L X60 Line Pipe | Black Painting, 3PE, lined pipe, Galvanized, CRA clad, FBE, Varnished, 3PP, 3LPE, Anti-Rust Oi, |

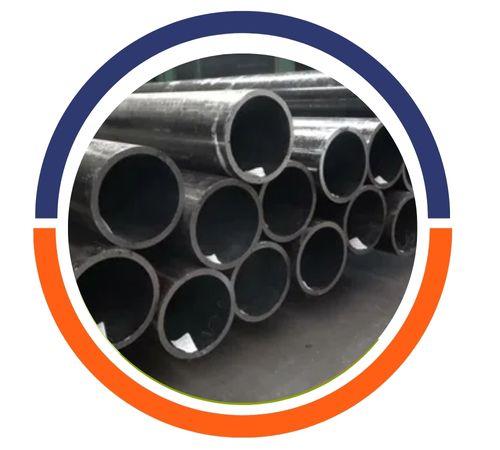

| Manufacturing process | Electro Fusion Seam Welded (EFSW), Cold Drawn Seamless (CDS), Electric Resistance Welded (ERW), Submerged Arc Welded (SAW), Welded, Longitudinally Submerged Arc Welded (LSAW), Extrusion, Seamless, Horizontal Submerged Arc Welded (HSAW), Hot Finish Seamless (HFS) |
| Approvals | KNPC, Merkblatt W0, PED, EIL, HAF 604, L&T, BP, ISO 17025 for Laboratories, IBR, NORSOK M-650, Saudi Aramco, AD2000, PED 97/23/EC, ONGC, Shell |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| CS PIPES | |||||||||||
| X60 | 0.24f | 0.45f | 1.4f | 0.025 | 0.015 | 0.10f | 0.05 | 0.04 | g,h | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 415(60 200) | 565(81 900) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X60 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Bhavesh Steel is a leading supplier of high-quality Carbon Steel API X60 5L PSL 2 Pipes products in Dubai, UAE. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
Carbon Steel API X60 5L PSL 2 Pipes are predominantly applied in the transmission of oil, gas, and water under high pressure, particularly in onshore and offshore pipe system networks. The strength of these pipes coupled with their resistance to stress corrosion makes them suitable for application in the energy sector, petrochemical plants, and refineries. Carbon Steel API X60 5L PSL 2 Pipes are also fit for use as structural components in the construction and marine industries, providing reliability in stressful environments. With their excellent mechanical properties, these pipes provide long life of service and operational efficiency in both normal and harsh service conditions.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
