Bhavesh Steel is a renowned Dubai, UAE-based manufacturer and supplier of premium quality Alloy Steel P11 Pipes. Weighed for their strength and accuracy, these pipes conform to international specifications and are embraced by industries across the globe. Bhavesh Steel guarantees timely delivery and competitive pricing in order to serve the high-demand requirements of the oil, gas, and power industries. Through sophisticated manufacturing techniques and relentless quality focus, Bhavesh Steel is an effective ally for Alloy Steel P11 Pipes throughout the UAE and overseas.
Alloy Steel P11 Pipes mainly contain chromium (0.5-0.65%), molybdenum (0.45-0.6%), and carbon (0.05-0.15%) combined with manganese, phosphorus, and sulfur in controlled proportions. These elements add strength, toughness, and resistance to high temperature. Mechanically, P11 pipes have high tensile strength (at least 415 MPa) and yield strength (at least 275 MPa), as well as good elongation (at least 22%). Their strong construction enables them to bear high pressure and thermal stress, and therefore they are well adapted for hard industrial conditions.

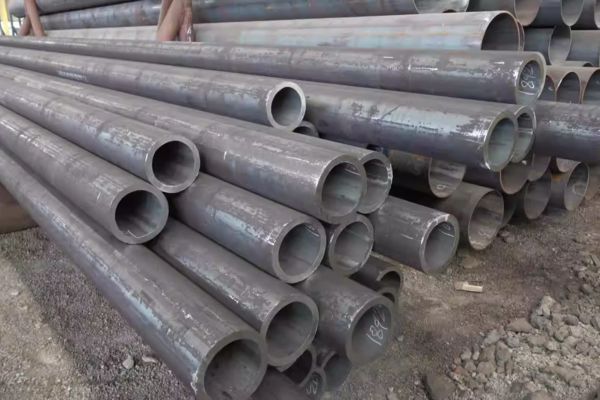

| Type | Seamless / ERW / Welded / Fabricated |
| Standard | ASTM A335 P11, SA335 P11 (with IBR Test Certificate) |
| Craft | Cold rolled and Cold drawn |
| Length | Standard Double & In Cut length also. |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Size | 1/2” NB to 36” NB |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Specialized in | Large Diameter ASTM A335 P11 Pipe |

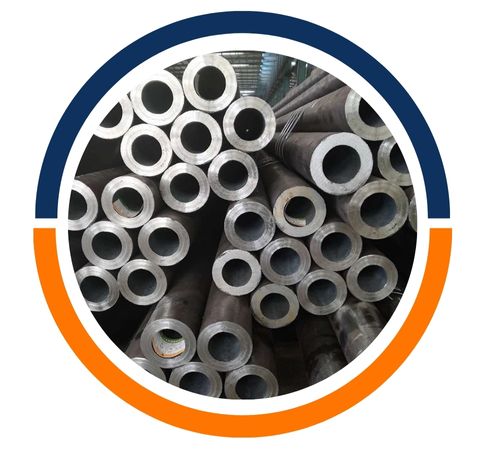

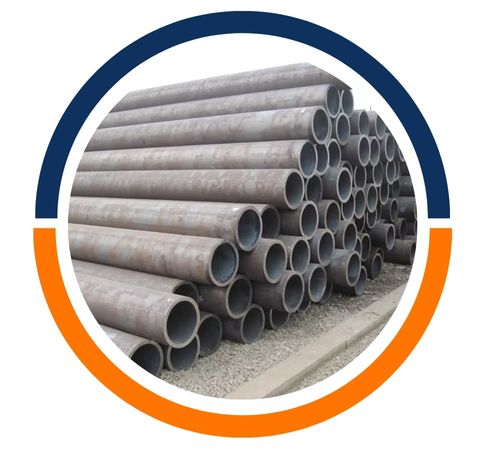

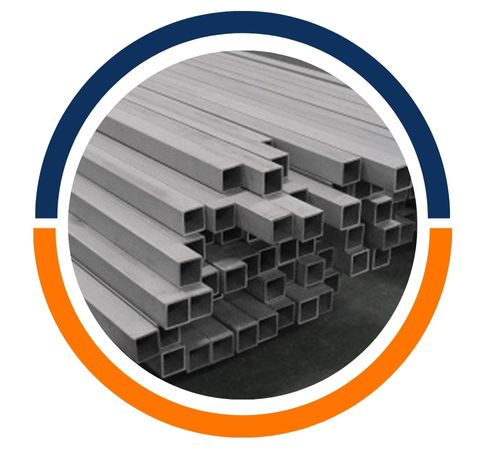

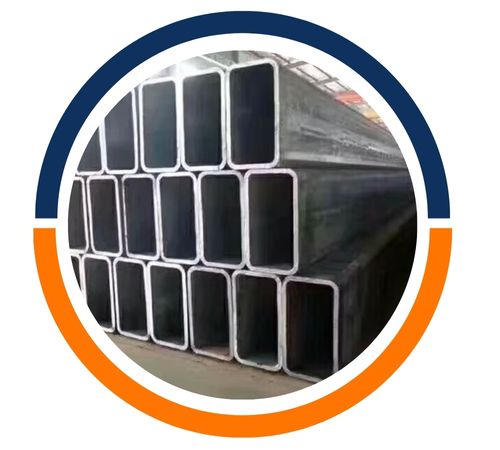

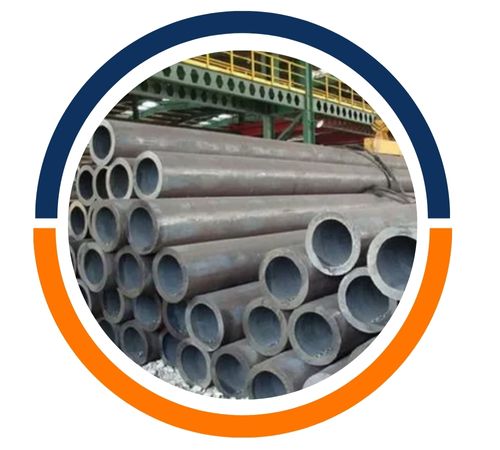

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| End | Plain End, Beveled End, Treaded |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Thickness | 3-12mm |
| Alloy Steel P11 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Bhavesh Steel is a major manufacturer and a supplier of premium Alloy Steel P11 pipe in Dubai, the UAE. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent Material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P11 | SA335 P11 | T11 | STPA 23 | K11597 | 3604 P1 621 | – | – | ABS 11 | KSTPA 23 | – |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P11 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Alloy Steel P11 Pipes are predominantly utilized in high-pressure and high-temperature conditions of power plants, oil refineries, and petrochemical plants. They are best suited for boiler tubes, superheater tubes, and heat exchanger tubes, where thermal stress corrosion resistance is essential. These pipes are also used in the fabrication of pressure vessels and piping systems for water, steam, and gas transportation. Their consistent performance in adverse conditions makes Alloy Steel P11 Pipes unavoidable in critical industrial operations.
