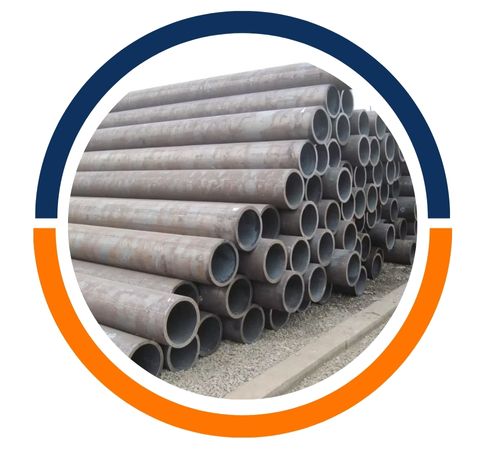

Bhavesh Steel is a reputed manufacturer and supplier of top-grade Alloy Steel P1 Pipes in Dubai, UAE. Known for its excellence-oriented philosophy, Bhavesh Steel offers long-lasting, accurately designed piping solutions that are specifically customized to suit international industry standards. As a market leader in the Middle East, the company provides timely delivery, best price, and unparalleled customer service. Whether used for industry, commercial, or infrastructure development, Bhavesh Steel promises top-class performance and reliability. Customers from diverse industries trust Bhavesh Steel for high-grade Alloy Steel P1 Pipes that provide exceptional strength and corrosion resistance.
Alloy Steel P1 Pipes consist mainly of chromium and molybdenum content that increases strength, heat resistance, and corrosion resistance. The common chemical composition comprises approximately 0.15% carbon, 0.44% manganese, 0.02% phosphorus, 0.01% sulfur, and 0.44% molybdenum. These pipes have superior mechanical characteristics like tensile strength of 380 MPa, yield strength of 205 MPa, and elongation of 30%. As high-temperature applications pipes, Alloy Steel P1 Pipes find their application in pressure systems where long life and uniform performance are required.
| Alloy Steel P1 pipe Size | 1/2” NB to 36” NB |
| P1 Grade Steel Pipe Standard | ASTM A335 P1, SA335 P1 (with IBR Test Certificate) |
| ASTM A335 P1 Alloy Steel Pipe Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| SA335 P1 Pipe Thickness | 3-12mm |
| ASTM A335 P1 Pipes Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |

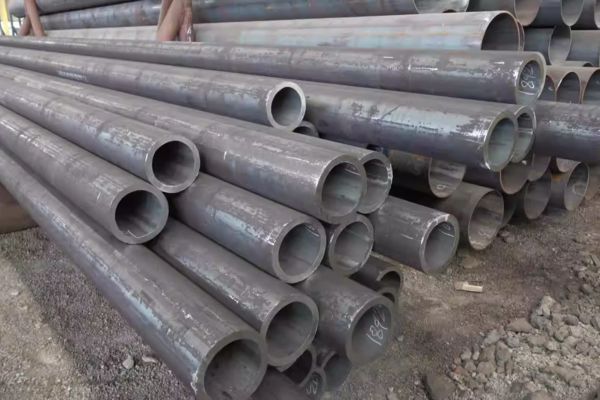

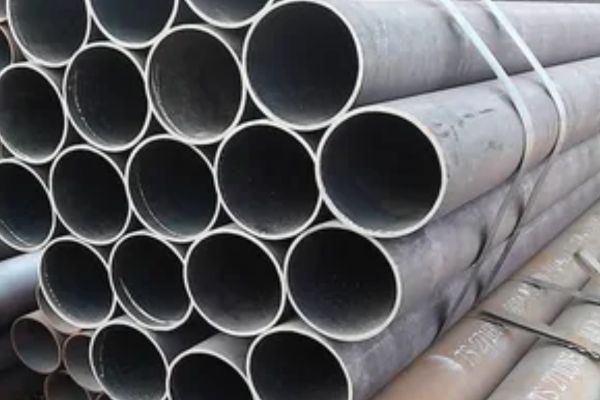

| ASTM A335 GR P1 Pipes Type | Seamless / ERW / Welded / Fabricated |
| Craft | Cold rolled and Cold drawn |
| UNS K11522 Pipes Length | Standard Double & In Cut length also. |

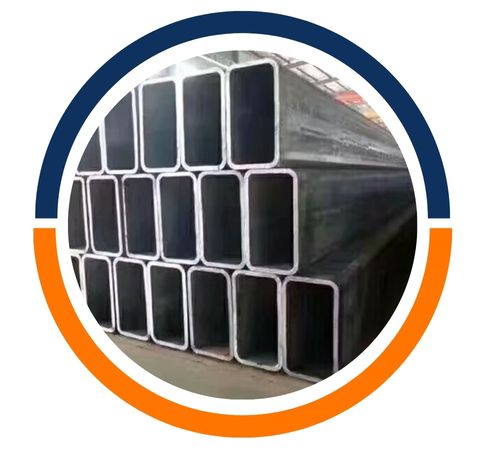

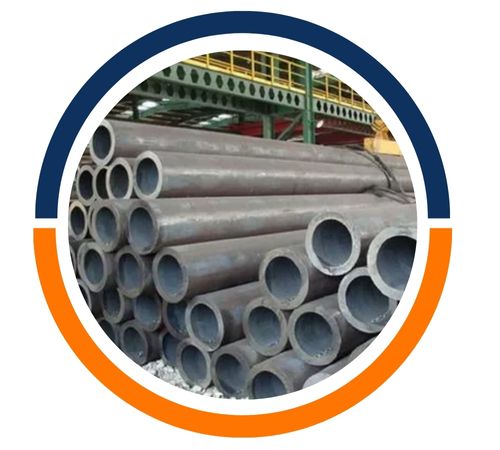

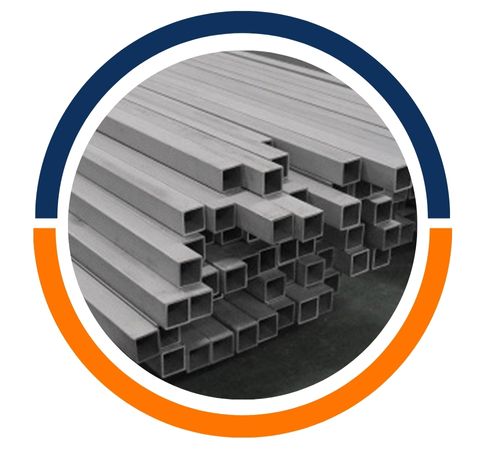

| ASTM A335 P1 Pipes available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Specialized in | Large Diameter ASTM A335 P1 Pipe |
| Sa335 Grade P1 Pipe End | Plain End, Beveled End, Treaded |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Alloy Steel P1 | C | Cr | S | Si | Mn | Mo | P |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.025 max | 0.50 – 1.00 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Bhavesh Steel is a major manufacturer and a supplier of premium Alloy Steel P1 pipe in Dubai, the UAE. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK |
| A335 P1 | SA335 P1 | STPA 12 | K11597 | – | 17175 15Mo3 | 2604 II TS26 | ABS 6 | KSTPA 12 |
| 17177 15Mo3 | 2604 III TW26 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P1 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Alloy Steel P1 Pipes are extensively used in power plants, petrochemical plants, oil and gas refineries, and high-temperature service. Due to their superior resistance against oxidation and pressure, P1 pipes are ideal for boiler installations, heat exchangers, superheaters, and steam lines. Their strength and thermal stability also make them ideal for use in chemical processing plants and fertilizer manufacturing units. In construction and infrastructural development, P1 pipes are the ideal choice for applications that demand consistent and durable performance under adverse conditions. Bhavesh Steel guarantees that each pipe conforms to high quality standards, ensuring best possible solutions for challenging industrial use.
