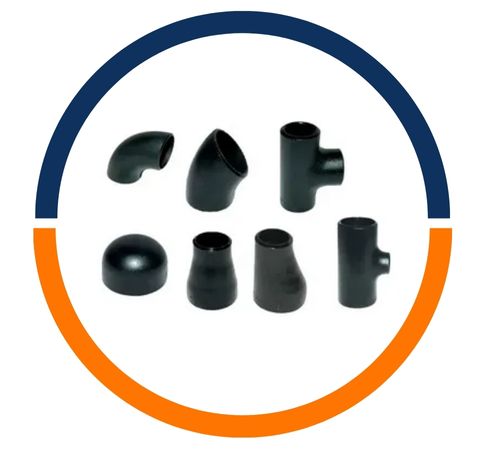

Leading Carbon Steel WPHY 65 Pipe Fittings manufacturer and supplier Bhavesh Steel is renowned for providing premium piping components that satisfy exacting industry standards in Dubai, United Arab Emirates. We provide WPHY 65 fittings with exceptional strength and corrosion resistance, all while maintaining a strong commitment to accuracy, dependability, and customer satisfaction. Our products are designed for high-temperature and high-pressure applications, catering to industries like construction, petrochemicals, oil and gas, and power plants. For high-end carbon steel fittings in the United Arab Emirates and the larger Middle East, Bhavesh Steel is a dependable partner.
The main constituents of Carbon Steel WPHY 65 Pipe Fittings are carbon, manganese, phosphorus, sulphur, and silicon; the carbon content is regulated for improved strength and weldability. These fittings are appropriate for high-pressure settings because they have a minimum yield strength of 65,000 psi (450 MPa) and a tensile strength of approximately 75,000 psi (517 MPa). Even at low temperatures, the material shows good toughness, ductility, and impact resistance. Additionally, WPHY 65 is renowned for its exceptional formability and weldability, which make fabrication simple and ensure dependable operation in crucial pipeline systems.
| Specification: | ASTM A860 WPHY 65 Fittings |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 65 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Elongation | Tensile Strength | Yield Strength (0.2%Offset) |
| ASTM A860 WPHY 65 Fittings | 28 % | 515-690 | 415 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

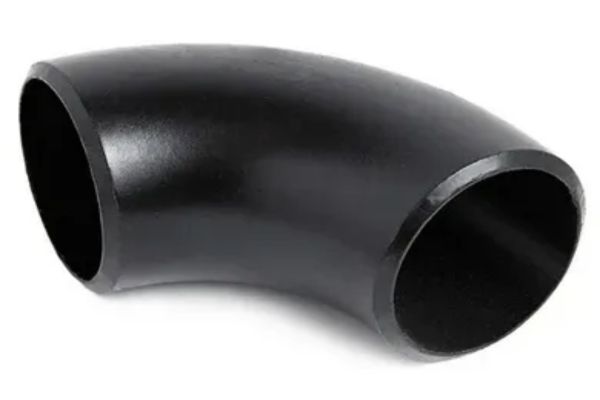

| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Bhavesh Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 65 Pipe Fittings products in Dubai, UAE. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Applications requiring strength, resistance to pressure, and dependability frequently use carbon steel WPHY 65 pipe fittings. They are necessary for moving natural gas, crude oil, and refined products via pipelines and processing facilities in the oil and gas sector. They are also utilised in petrochemical facilities to handle hot and corrosive fluids, as well as in power plants for high-pressure water and steam lines. Large-scale infrastructure projects like bridges and industrial buildings are supported by these fittings during construction. They are perfect for heavy-duty, offshore, and marine mechanical systems because of their strong mechanical qualities.
