Bhavesh Steel is a prominent high-quality Carbon Steel Screws manufacturer and supplier in Dubai, UAE. Its reputation for striving for excellence and precision engineering makes Bhavesh Steel offer high-quality fastening solutions for various industrial applications. Committed to innovation, reliability, and customer satisfaction, the company has built a robust reputation both locally and globally. All Carbon Steel Screws are produced by employing the latest technology and quality control measures to meet reliability in harsh environments. Bhavesh Steel is your reliable partner for robust and economical fastening solutions within the UAE and internationally.
Carbon Steel Screws consist of iron and carbon as their major components with 0.05% to 2.0% carbon content. These screws can also contain minute traces of sulfur, phosphorus, and manganese to allow them increased machinability and strength. They possess high tensile strength, great hardness, as well as increased wear resistance. Their tensile strength tends to be between 400 and 800 MPa, depending on the heat treatment as well as the carbon content. These mechanical properties qualify Carbon Steel Screws for use in construction and manufacturing conditions where there is a need for durability, strength, and longevity of performance.

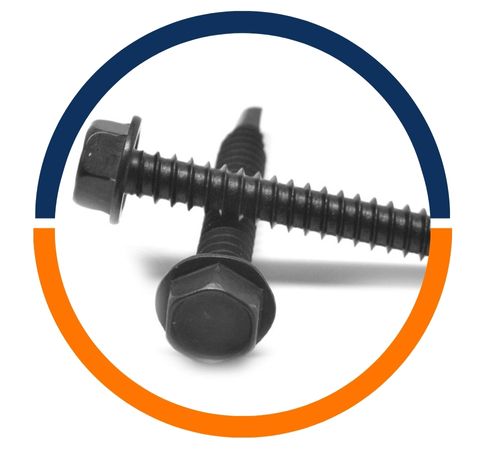

Specification : ASTM F568 / ASME SF568
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length : 3 mm to 200 mm

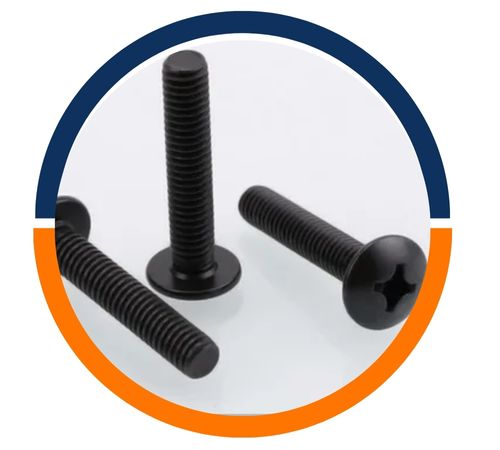

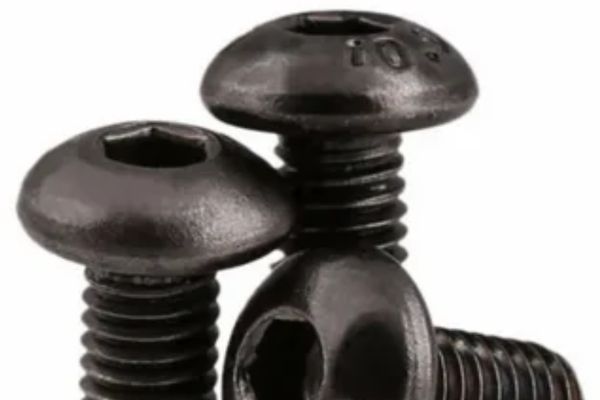

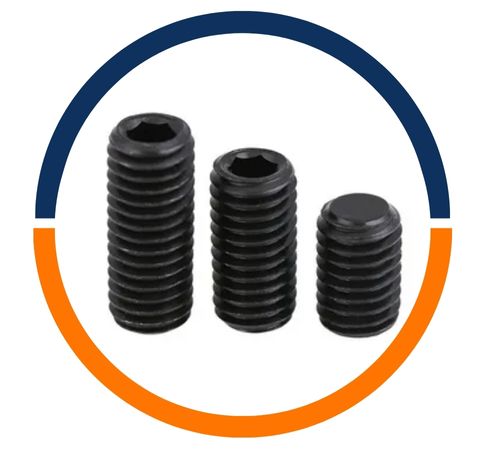

Type : Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Screw in Dubai, UAE. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Screw needs!
| Screw Nom. Size Thread Pitch | Body Diameter D | Head Diameter A | Head Height H | Chamfer or Radius S | Hexagon Socket Size J | Spline Socket Sizea M | Key Engagement T | Transition Dia. B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Nom. | Nom. | Min | Max | |
| M1.6 × 0.35 | 1.60 | 1.46 | 3.00 | 2.87 | 1.60 | 1.52 | 0.16 | 1.5 | 1.829 | 0.80 | 2.0 |
| M2 × 0.4 | 2.00 | 1.86 | 3.80 | 3.65 | 2.00 | 1.91 | 0.20 | 1.5 | 1.829 | 1.00 | 2.6 |
| M2.5 × 0.45 | 2.50 | 2.36 | 4.50 | 4.33 | 2.50 | 2.40 | 0.25 | 2.0 | 2.438 | 1.25 | 3.1 |
| M3 × 0.5 | 3.00 | 2.86 | 5.50 | 5.32 | 3.00 | 2.89 | 0.30 | 2.5 | 2.819 | 1.50 | 3.6 |
| M4 × 0.7 | 4.00 | 3.82 | 7.00 | 6.80 | 4.00 | 3.88 | 0.40 | 3.0 | 3.378 | 2.00 | 4.7 |
| M5 × 0.8 | 5.00 | 4.82 | 8.50 | 8.27 | 5.00 | 4.86 | 0.50 | 4.0 | 4.648 | 2.50 | 5.7 |
| M6 × 1 | 6.00 | 5.82 | 10.00 | 9.74 | 6.00 | 5.85 | 0.60 | 5.0 | 5.486 | 3.00 | 6.8 |
| M8 × 1.25 | 8.00 | 7.78 | 13.00 | 12.70 | 8.00 | 7.83 | 0.80 | 6.0 | 7.391 | 4.00 | 9.2 |
| M10 × 1.5 | 10.00 | 9.78 | 16.00 | 15.67 | 10.00 | 9.81 | 1.00 | 8.0 | … | 5.00 | 11.2 |
| M12 × 1.75 | 12.00 | 11.73 | 18.00 | 17.63 | 12.00 | 11.79 | 1.20 | 10.0 | … | 6.00 | 14.2 |
| M14 × 2b | 14.00 | 13.73 | 21.00 | 20.60 | 14.00 | 13.77 | 1.40 | 12.0 | … | 7.00 | 16.2 |
| M16 × 2 | 16.00 | 15.73 | 24.00 | 23.58 | 16.00 | 15.76 | 1.60 | 14.0 | … | 8.00 | 18.2 |
| M20 × 2.5 | 20.00 | 19.67 | 30.00 | 29.53 | 20.00 | 19.73 | 2.00 | 17.0 | … | 10.00 | 22.4 |
| M24 × 3 | 24.00 | 23.67 | 36.00 | 35.48 | 24.00 | 23.70 | 2.40 | 19.0 | … | 12.00 | 26.4 |
| M30 × 3.5 | 30.00 | 29.67 | 45.00 | 44.42 | 30.00 | 29.67 | 3.00 | 22.0 | … | 15.00 | 33.4 |
| M36 × 4 | 36.00 | 35.61 | 54.00 | 53.37 | 36.00 | 35.64 | 3.60 | 27.0 | … | 18.00 | 39.4 |
| M42 × 4.5 | 42.00 | 41.61 | 63.00 | 62.31 | 42.00 | 41.61 | 4.20 | 32.0 | … | 21.00 | 45.6 |
| M48 × 5 | 48.00 | 47.61 | 72.00 | 71.27 | 48.00 | 47.58 | 4.80 | 36.0 | … | 24.00 | 52.6 |
| Screw Size | Body Dia | Hex Key Size | Head Height | Head Dia | Maximum Thread Length | Minimum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 0.05 | 0.06 | 0.096 | 5/8 | 3/8 |
| No. 1 | 0.073 | 1/16 | 0.073 | 0.118 | 7/8 | 3/8 |
| No. 2 | 0.086 | 5/64 | 0.086 | 0.14 | 7/8 | 1/2 |
| No. 3 | 0.099 | 5/64 | 0.099 | 0.161 | 7/8 | 1/2 |
| No. 4 | 0.112 | 3/32 | 0.112 | 0.183 | 11/8 | 11/16 |
| No. 5 | 0.125 | 3/32 | 0.125 | 0.205 | 1 | 11/16 |
| No. 6 | 0.138 | 7/64 | 0.138 | 0.226 | 11/8 | 11/16 |
| No. 8 | 0.164 | 9/64 | 0.164 | 0.27 | 11/4 | 3/4 |
| No. 10 | 0.19 | 5/32 | 0.19 | 0.312 | 13/8 | 15/16 |
| No. 12 | 0.216 | 5/32 | 0.216 | 0.345 | 11/4 | 15/16 |
| 1/4 | 0.250 | 3/16 | 1/4 | 3/8 | 11/2 | 15/16 |
| 5/16 | 0.3125 | 1/4 | 5/16 | 15/32 | 1-3/4 | 1-1/16 |
| 3/8 | 0.375 | 5/16 | 3/8 | 9/16 | 2 | 1-3/16 |
| 7/16 | 0.438 | 3/8 | 7/16 | 21/32 | 2-1/4 | 13/16 |
| 1/2 | 0.500 | 3/8 | 1/2 | 3/4 | 2-1/2 | 1-3/8 |
| 9/16 | 0.5625 | 7/16 | 9/16 | 27/32 | 2-7/16 | 1-5/8 |
| 5/8 | 0.625 | 1/2 | 5/8 | 15/16 | 3 | 1-5/8 |
| 3/4 | 0.750 | 5/8 | 3/4 | 11/8 | 3-1/2 | 1-7/8 |
| 7/8 | 0.875 | 3/4 | 7/8 | 15/16 | 3-3/4 | 2-1/16 |
| 1 | 1.000 | 3/4 | 1 | 11/2 | 4-1/2 | 2-1/4 |
| 1-1/8 | 1.125 | 7/8 | 1-1/8 | 111/16 | 4-21/32 | 2-13/16 |
| 1-1/4 | 1.250 | 7/8 | 1-1/4 | 17/8 | 5-3/32 | 3-1/8 |
| 1-1/2 | 1.500 | 1 | 1-1/2 | 21/4 | 6-5/64 | 3-3/4 |
| 1-3/4 | 1.750 | 11/4 | 1-3/4 | 25/8 | 7-1/8 | 4-3/8 |
| 2 | 2.000 | 11/2 | 2 | 3 | 8-7/64 | 5 |
Carbon Steel Screws find extensive application in many industries because of their strength, cost-effectiveness, and versatility. In the construction industry, they are utilized in the assembly of metal structures, roofing, and structural supports. They are used in engine parts, chassis assembly, and exhaust systems by the automobile industry. They are crucial in machinery fabrication, furniture manufacturing, and general fabrication. They are capable of withstanding high stress and severe conditions and are hence applicable for indoor and outdoor use. Bhavesh Steel‘s Carbon Steel Screws have been designed to provide reliable fastening solutions in commercial, industrial, and infrastructural projects.
