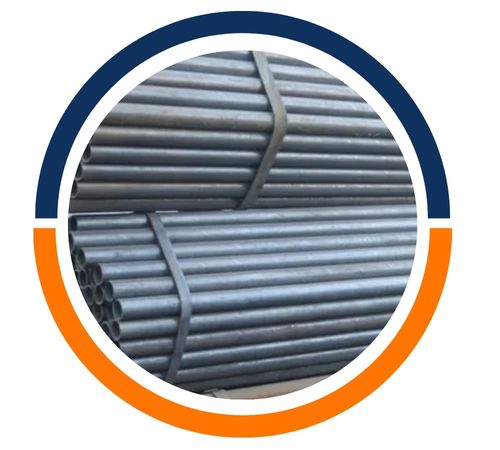

Bhavesh Steel, founded in 1995 and based in Dubai, UAE, is a premier producer and supplier of high-quality carbon steel JIS G3454 pipes. These seamless alloy steel tubes are designed to deliver exceptional performance in high-temperature conditions like boilers, heat exchangers, and superheaters. Bhavesh Steel’s devotion to quality provides every pipe to international standards, providing customers long-lasting and reliable solutions for their industrial requirements. With a strong distribution network and a tradition of excellence, Bhavesh Steel remains a leader as a trusted partner in the steel industry.
JIS G3454 carbon steel pipes contain mainly carbon, manganese, phosphorus, sulfur, silicon, chromium, and molybdenum. The carbon content is usually up to 0.25% and manganese content is between 0.30% and 0.90%. Low levels of phosphorus and sulfur are maintained, usually below 0.040%, in order to improve weldability and minimize brittleness. Mechanical characteristics involve tensile strengths of 370 MPa, yield strengths of 216 MPa, and elongation percentages of 30%, depending on grade. Pipes can operate in high-temperature environments and are best suited for heat transfer purposes.
| Standard | : | JIS G3454 |
| JIS G3454 Grade | : | STPG 410, STPG 370 |
| JIS G3454 Outer Dimensions | : | 6mm – 150mm |
| JIS G3454 Wall Thickness | : | 1.0mm – 20 mm THK |
| JIS G3454 | Elongation % | ||||
|---|---|---|---|---|---|
| C | Si | Mn | P | S | |
| STPG 370 | 0.25 max. | 0.35 max. | 0.30 to 0.90 | 0.040 max. | 0.040 max. |
| STPG 410 | 0.30 max. | 0.35 max. | 0.30 to 1.00 | 0.040 max. | 0.040 max. |
| JIS G3454 | Tensile strength | Yield point or proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No.11 and No.12 test pieces | No. 5 test pieces | No. 4 test piece | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| STPG 370 | 38 {373}min | 22{216} min | 30 min | 25 min | 23 min | 28 min |
| STPG 410 | 42{412}min | 25{245} min | 25 min | 20 min | 19 min | 24 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel JIS G3454 Pipe products in Dubai, UAE. Specializing in premium steel materials, we offer a comprehensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel ensures the supply of top-grade materials that provide superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel JIS G3454 Pipe needs.
| Permissible Specified Outside Diameter and Specified Wall Thickness | ||
Specified Outside Diameter D mm (in.) | Specified Wall Thickness t mm (in.) | |
| Special Light Sizes a | Regular Sizes | |
| ≥ 10.3 (0.405) to < 13.7 (0.540) | — | ≥ 1.7 (0.068) to ≤ 2.4 (0.094) |
| ≥ 13.7 (0.540) to < 17.1 (0.675) | — | ≥ 2.2 (0.088) to ≤ 3.0 (0.118) |
| ≥ 17.1 (0.675) to < 21.3 (0.840) | — | ≥ 2.3 (0.091) to ≤ 3.2 (0.125) |
| ≥ 21.3 (0.840) to < 26.7 (1.050) | — | ≥ 2.1 (0.083) to ≤ 7.5 (0.294) |
| ≥ 26.7 (1.050) to < 33.4 (1.315) | — | ≥ 2.1 (0.083) to ≤ 7.8 (0.308) |
| ≥ 33.4 (1.315) to < 48.3 (1.900) | — | ≥ 2.1 (0.083) to ≤ 10.0 (0.394) |
| ≥ 48.3 (1.900) to < 60.3 (2.375) | — | ≥ 2.1 (0.083) to ≤ 12.5 (0.492) |
| ≥ 60.3 (2.375) to < 73.0 (2.875) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 14.2 (0.559) |
| ≥ 73.0 (2.875) to < 88.9 (3.500) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 20.0 (0.787) |
| ≥ 88.9 (3.500) to < 101.6 (4.000) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 22.0 (0.866) |
| ≥ 101.6 (4.000) to < 168.3 (6.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 25.0 (0.984) |
| ≥ 168.3 (6.625) to < 219.1 (8.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 219.1 (8.625) to < 273.1 (10.750) | ≥ 3.2 (0.125) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 273.1 (10.750) to < 323.9 (12.750) | ≥ 3.6 (0.141) to ≤ 5.2 (0.203) | > 5.2 (0.203) to ≤ 45.0 (1.771) |
| ≥ 323.9 (12.750) to < 355.6 (14.000) | ≥ 4.0 (0.156) to ≤ 5.6 (0.219) | > 5.6 (0.219) to ≤ 45.0 (1.771) |
| ≥ 355.6 (14.000) to < 457 (18.000) | ≥ 4.5 (0.177) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 457 (18.000) to < 559 (22.000) | ≥ 4.8 (0.188) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 559 (22.000) to < 711 (28.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 711 (28.000) to < 864 (34.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 52.0 (2.050) |
| ≥ 864 (34.000) to < 965 (38.000) | — | ≥ 5.6 (0.219) to ≤ 52.0 (2.050) |
| ≥ 965 (38.000) to < 1422 (56.000) | — | ≥ 6.4 (0.250) to ≤ 52.0 (2.050) |
| ≥ 1422 (56.000) to < 1829 (72.000) | — | ≥ 9.5 (0.375) to ≤ 52.0 (2.050) |
| ≥ 1829 (72.000) to < 2134 (84.000) | — | ≥ 10.3 (0.406) to ≤ 52.0 (2.050) |
Carbon steel JIS G3454 pipes find extensive applications across different industries because of their superior strength and heat transfer capabilities. In the power generation industry, these pipes are utilized in superheaters, economizers, and boilers for effective heat transfer and energy efficiency. They are also used in fossil fuel plants and steam-generating systems due to their high-temperature and pressure resistance properties. JIS G3454 pipes are also found in petrochemical plants and refineries, where they offer consistent performance under harsh conditions.
