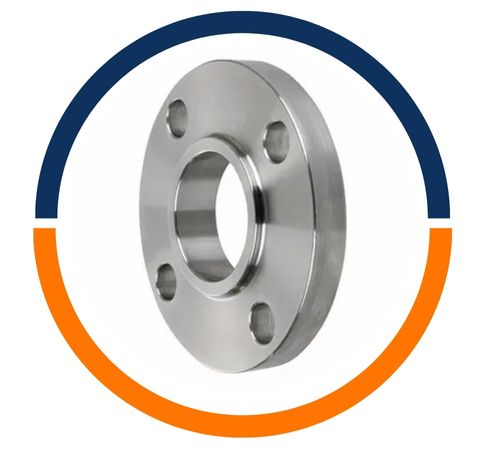

Bhavesh Steel has made a name for itself as a leading manufacturer and supplier of Alloy Steel F12 Flanges, proudly based in Dubai, UAE. With a strong focus on quality and customer satisfaction, this company delivers top-notch F12 alloy steel flanges that adhere to international standards. Thanks to their state-of-the-art manufacturing facilities and a dedicated team of skilled professionals, Bhavesh Steel caters to a diverse array of industries throughout the Middle East and beyond. These flanges are designed to be durable, strong, and perform exceptionally well even under extreme pressure and temperature conditions, establishing Bhavesh Steel as a reliable choice for alloy steel flange solutions.
Alloy Steel F12 Flanges are crafted from low alloy chromium-molybdenum steel, containing about 1% chromium and 0.5% molybdenum. This unique blend boosts their mechanical strength, heat resistance, and corrosion resistance. Typically, these flanges boast a tensile strength ranging from 415 to 585 MPa, a minimum yield strength of 205 MPa, and an elongation of around 20%. Such impressive mechanical properties make F12 flanges dependable for use in challenging environments, ensuring they maintain their structural integrity under thermal and mechanical stress. Their consistent performance across various conditions makes them a go-to choice for numerous industrial applications.
Alloy Steel Flanges Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

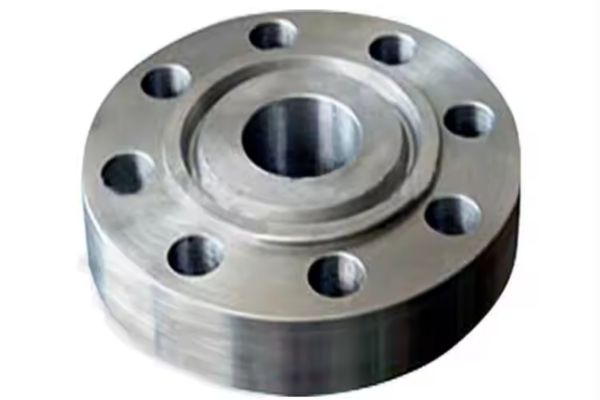

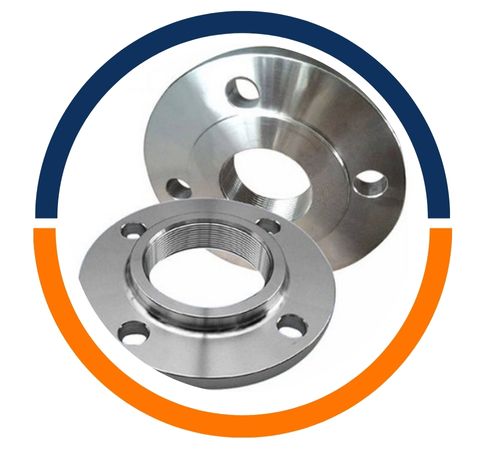

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F12 | 0.05-0.15 | 0.30-0.60 | 0.045 | 0.045 | 0.50 max | – | 0.80-1.25 | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F12 | 415 | 220 | 20 | – | 121-174 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F12 | K11562/K11564 | 1.7335 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

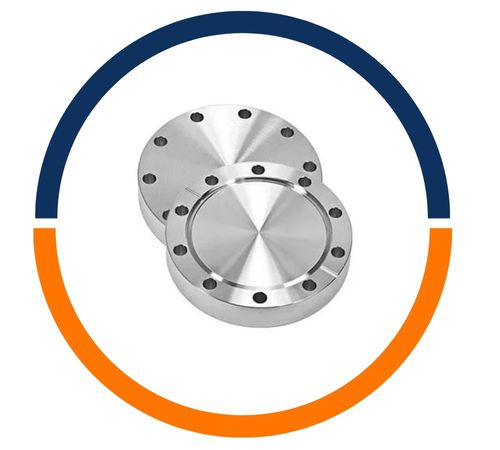

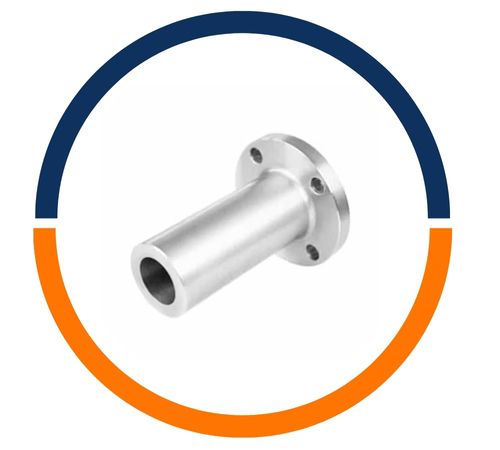

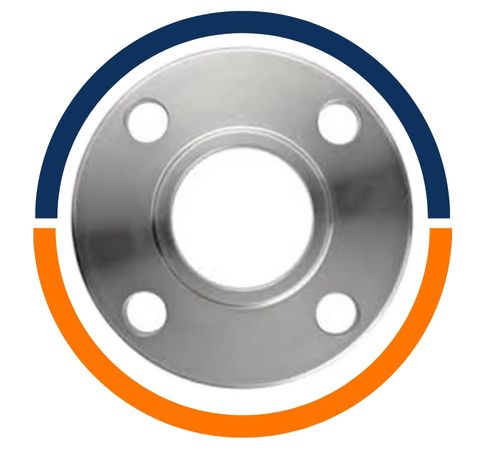

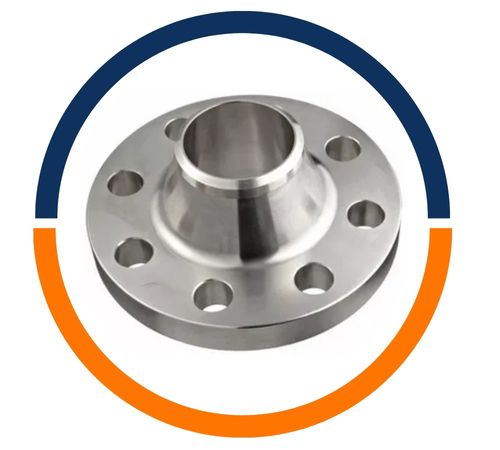

| SORF (Slip On) | NPS (Nominal Pipe Size) | WRNR (Weld Neck) | NPT (Threaded) | Loose (Lap Joint) | SWRF (Socket Weld) | BLRF (Blind) |
|---|---|---|---|---|---|---|
| 1 | ½ | 2 | 1 | 1 | 2 | 2 |
| 2 | ¾ | 2 | 2 | 2 | 2 | 2 |
| 2 | 1 | 3 | 2 | 2 | 2 | 2 |
| 3 | 1¼ | 3 | 3 | 3 | 3 | 3 |
| 3 | 1½ | 4 | 3 | 3 | 3 | 4 |
| 5 | 2 | 6 | 5 | 5 | 5 | 5 |
| 8 | 2½ | 10 | 8 | 8 | 8 | 7 |
| 9 | 3 | 11.5 | 9 | 9 | 9 | 9 |
| 11 | 3½ | 12 | 12 | 11 | 11 | 13 |
| 13 | 4 | 16.5 | 13 | 13 | 13 | 17 |
| 15 | 5 | 21 | 15 | 15 | 15 | 20 |
| 19 | 6 | 26 | 19 | 19 | 19 | 27 |
| 30 | 8 | 42 | 30 | 30 | 30 | 47 |
| 43 | 10 | 54 | 43 | 43 | 43 | 70 |
| 64 | 12 | 88 | 64 | 64 | 64 | 123 |
| 90 | 14 | 114 | 90 | 105 | 90 | 140 |
| 106 | 16 | 140 | 98 | 140 | 98 | 180 |
| 130 | 18 | 165 | 130 | 160 | 130 | 220 |
| 165 | 20 | 197 | 165 | 195 | 165 | 285 |
| 185 | 22 | 225 | 185 | 245 | 185 | 355 |
| 220 | 24 | 268 | 220 | 275 | 220 | 430 |
Bhavesh Steel is a top manufacturer and supplier of high-quality Alloy Steel F12 Flanges products in Dubai, UAE. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Industries that demand high strength and resistance to heat and pressure widely utilize Alloy Steel F12 Flanges. These sectors include power plants, oil and gas refineries, petrochemical facilities, and industrial processing systems. They play a crucial role in connecting pipelines, valves, pumps, and equipment where durability is essential. Their outstanding performance in extreme conditions also makes them ideal for heat exchangers, pressure vessels, and offshore platforms. Moreover, F12 flanges find their place in marine engineering due to their remarkable corrosion resistance and long service life, ensuring reliable operations even in tough environments.
