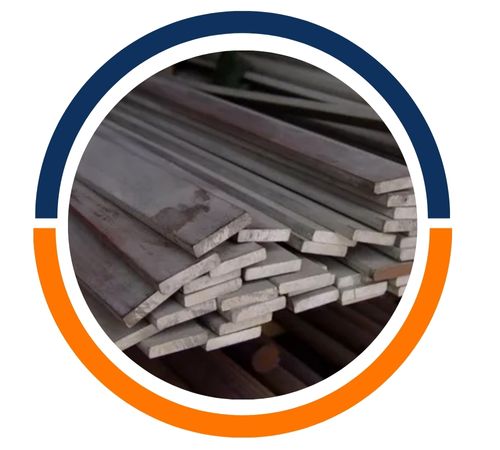

Bhavesh Steel is a globally accepted producer and supplier of high-grade Alloy Steel AISI 8620 Bars in Dubai, UAE. Earning a commendable reputation for supplying top-notch steel products, we serve numerous industrial applications in the Middle East and globally. Our AISI 8620 bars are designed in accordance with international specifications, making them easily reliable, strong, and high-performance in critical applications. At Bhavesh Steel, customer satisfaction, timely delivery, and quality assurance are our business pillars, making us the go-to partner for any alloy steel requirement in the area.
Alloy Steel AISI 8620 Bars consist of major constituents such as carbon (0.18-0.23%), manganese (0.70-0.90%), chromium (0.40-0.60%), molybdenum (0.15-0.25%), and nickel (0.40-0.70%). All these constituents add to its toughness, hardenability, and wear resistance. The typical mechanical properties are tensile strength of 860 MPa, yield strength of 690 MPa, and very good elongation of 20%. With a Brinell hardness of 250–290 HB, AISI 8620 steel possesses excellent machinability and ductility and is suitable for both core strength and surface hardening purposes.
| AISI 8620 Steel Round Bar Plate Sheet Supply Range | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Specification | Surface | |||||||||||||||||
| Round Bar | Diameter: 16mm – 800mm; length: 2000mm-5000mm Other specifications can be customized. | Black Surface/Bright Surface/ Grinded/Peeled/Turned | |||||||||||||||||
| Sheet/Plate/Slab | Thickness: 16-800mm; width: 205mm-810mm; length: 2000mm-5000mm Other specifications can be customized. | Black Surface/Bright Surface/ Grinded/Peeled/Turned | |||||||||||||||||
| STAND | C(%) | Mn(%) | P(%) | S(%) | Si(%) | Cr(%) | Mo(%) | Ni(%) |
|---|---|---|---|---|---|---|---|---|
| ASTM A29/A29M-05 | 0.18-0.23 | 0.70-0.90 | ≤0.035 | ≤0.040 | 0.15-0.35 | 0.40-0.60 | 0.15-0.25 | 0.40-0.70 |
| EN 10084-2008 | 0.17-0.23 | 0.65-0.95 | ≤0.025 | ≤0.035 | 0.40 | 0.35-0.70 | 0.15-0.25 | 0.40-0.70 |
| JIS G4053-2008 | 0.17-0.23 | 0.60-0.90 | Max0.030 | Max0.030 | 0.15-0.35 | 0.40-0.60 | 0.15-0.25 | 0.40-0.70 |
| ISO 683/11:1987 | 0.17-0.23 | 0.65-0.95 | ≤0.035 | ≤0.035 | 0.15-0.40 | 0.30-0.65 | 0.15-0.25 | 0.40-0.70 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 530 MPa | 76900 psi |
| Yield strength | 385 MPa | 55800 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Izod Impact | 115 J | 84.8 ft.lb |
| Hardness, Brinell | 149 | 149 |
| Hardness, Knoop (converted from Brinell hardness) | 169 | 169 |
| Hardness, Rockwell B (converted from Brinell hardness) | 80 | 80 |
| Hardness, Vickers (converted from Brinell hardness) | 155 | 155 |
| Machinability (hot rolled and cold drawn, based on 100 machinability for AISI 1212 steel) | 65 | 65 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Country | USA | Germany/UAE/France | JAPAN | ISO |
|---|---|---|---|---|
| Standard | ASTM A29/A29M-05 | EN 10084-2008 | JIS G4053-2008 | ISO 683/11:1987 |
| Grades | 8620 | 20NiCrMo2-2 (1.6523) | SNCM220 | 20NiCrMo2 |
Alloy Steel AISI 8620 Bars find extensive applications in those demanding high toughness and abrasion resistance along with good core strength. These bars are perfect for the production of gears, camshafts, crankshafts, fasteners, and other mechanical and automotive products that are required to undergo carburizing. They possess a well-balanced chemical composition and mechanical properties that qualify them for parts subjected to repetitive stress and wear. Widely used in the automotive, aerospace, and oil & gas sectors, AISI 8620 is also used in structural components where surface hardness and durability are of utmost importance. Its adaptability guarantees steady performance in low as well as high-stress situations.
